FL4835 Large Format Flexo CTP Machine for Corrugated Carton Printing
EcooSetter FL4835 is the VLF Flexo CTP machine for Corrugated Carton Printing,with the 256CH laser head,which can output Kodak similar 5080dpi Screen dots with high speed. It can make max polymer cliche plate size 1200x1020mm, thickness 0.14mm to 6.35mm . The exposing,washing,drying could be done by the All In One flexo CTP processor.
1. Specification
EcooSetter Flexo Digital CTP FL4835
Laser Channel: 256channel
Output Speed: 48*35 inch, about 20 minutes
Max. Breadth: 48"×35"/1200mm×1020mm
Plate Thickness: 0.14mm - 6.35mm
Laser Power: High power semiconductor laser diode
Plate Type: Digital relief flexo plate (water-wash), Digital flexo plate (water-wash), Digital flexo plate (Solvent-wash) Steel based digital plates (water/ alcohol washable) are applied for EM/ SM series
Application: Label and trademark
Resolutions: 5080dpi
Plate Loading: Manual load and unload
Interface: USB2.0
Focus adjust: Dynamic auto-focus
Device Size: 2,315×1,370×1,052 (WxDxH mm)
Net Weight: 1200Kg
Power: 220V/50Hz, 60Hz, mainframe 1.5KW + Vacuum 1.1KW
Environment: Recommended temperature: 18-30ºC Humidity: 10-80%
2. Other similar Models
| Model | ECOO-FL4835S | ECOO-FL4835F |
| Exposing Mothod | External Drum |
| Imaging System | 1064nm fiber laser device (H256 heads) |
| Throughput | 3 sqm/hour at 5080 dpi | 5 sqm/hour at 5080 dpi |
| | 48*35 inch, about 20 minutes | 48*35 inch, about 12 minutes |
| Exposing Size | Max.size 1200*1020mm, min. Size 200*200mm |
| Media Type | Dry ablation film, Digital water washing letterpress plate. Digital water washing flexo plate, Digital solvent washing flexo plate |
| Plate Thickness | 0.14mm to 6.35mm |
| Resolution | 5080DPI (compatible with 2540DPI) , can extend to support 10160DPI |
| Plate Loading | Automatic/Manual plate loading |
| Net Weight | 1500kg |
| Machine Size
(WxLxH)mm | 1974*1750*1537mm (L*W*H) |
| Power Supply | Three phase voltage: 380V, Max. Power (peak value) 16 kw |
| Operation
Environment | recommended:15-30℃, Max.21-25℃, humidity:40-70% |
| EcooSetter Flexo CTP Series Technical Specifications |
| Model | EcooSetter | EcooSetter | EcooSetter | EcooSetter | EcooSetter | EcooSetter |
| FL-600E | FL-600S | FL-800E | FL-800S | FL- 1500E | FL-1500S |
| Laser Channel | 16CH | 32CH | 16CH | 32CH | 32CH | 64CH |
| Output Speed | 1.25 m2/h | 2.5 m2/h | 1.25 m2 /h | 2.5 m2 /h | 4.3m2 /h | 8.5 m2/h |
| Max.Breadth | 26'' x 17''/
680mm x430mm | 25"x30"/635mmx762mm | 47"×60"/1200mm×1524mm |
| Min. Breadth | 100mmx100mm |
| Plate Type | Digital relief flexo plate(water-wash) ,digital flexo plate(solvent-wash),steel based digital plate(water/alcohol washable) are applied for EM/SM series |
| Plate Thickness | 0.7mm - 1.7mm | 0.7mm-2.84mm | 0.9mm-3.94mm |
| Application | Label and trademark | Paper box and soft packaging |
| Resolutions | 4000dpi , optional:3000dpi or 2400dpi |
| Plate Loading | Manual load and unload |
| Interface | USB2.0 |
| Focus Adjust | Dynamic autofocus |
| Laser Lifetime | >10000h |
Device Size
(WxDxH)mm | 1087x770x1000 | 1,630×1,170×965 | 2,315×1,370×1,052 |
| Net Weight | 400KG | 800KG | 1200KG |
| Power | Single phase: 220V/50HZ, 60HZ/3KW | Single phase: 200V/50HZ, 60HZ/4.5KW |
| Environment | Recommended temperature: 18-30ºC Hu m i dity: 10%- 80% |
Our Factory
FAQ:
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
Lifetime Warranty for the CTP machine combined with the plates.
4. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will available for technical support for 7x24 hours.
Product Tags:
|
|

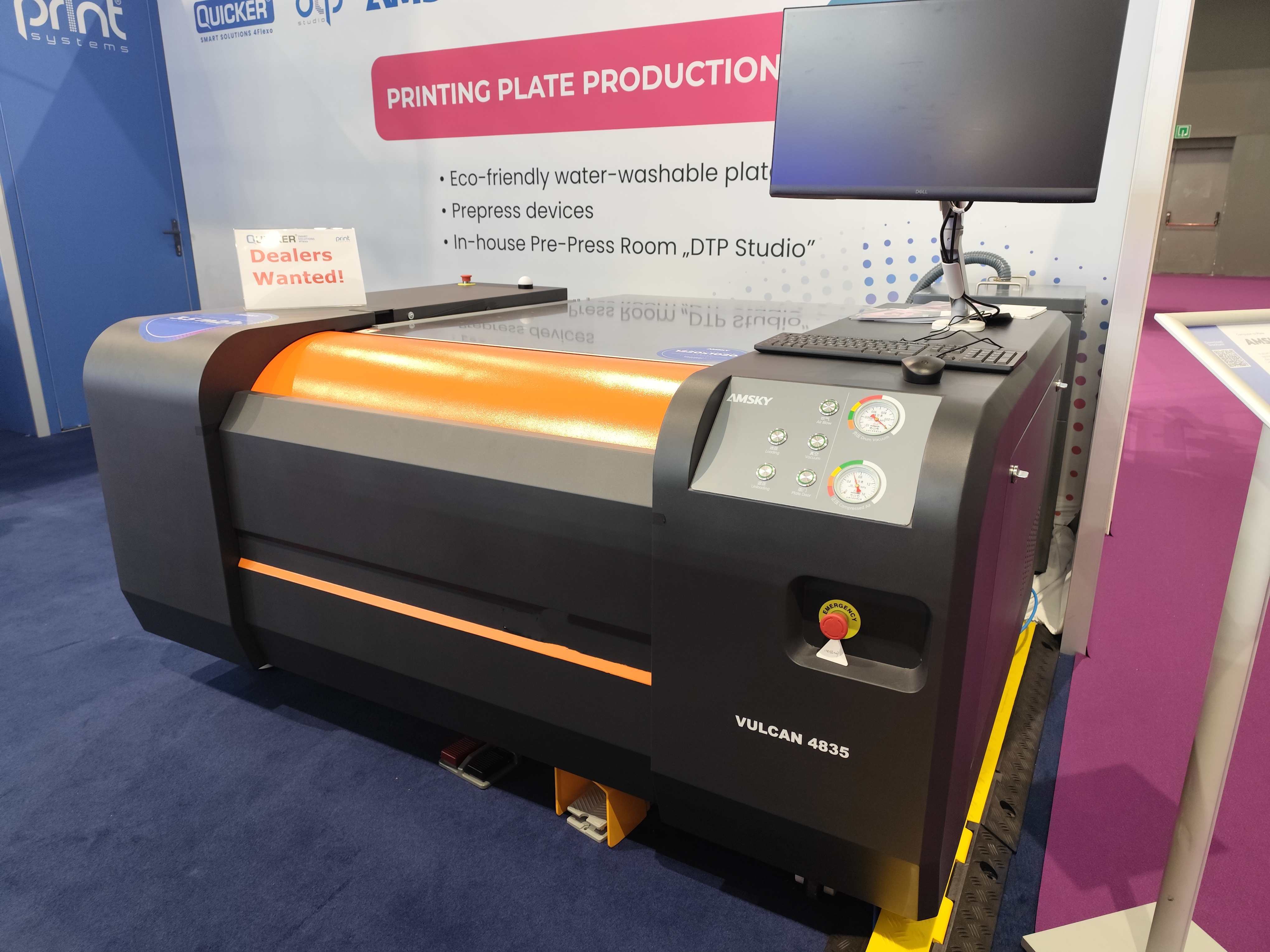

Large Format Flexo CTP Plate Making Machine Images
|
